Pins and Wedges
The Pin and Wedge system is simple and fast, allowing unskilled labor to be quickly trained in the use of the equipment. Standard pins and wedges increase efficiency in any application, while special applications such as laydown, corner, and radius applications are made simpler with WTF specialty pins and wedges.

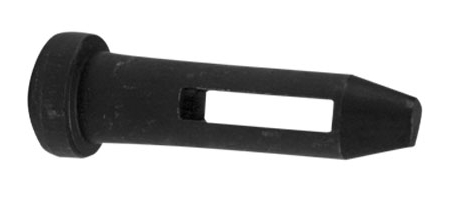

Standard Pin
Product #SPI10000000000
250/bucket
Our round, tapered pins have a milled wedge slot. The shank is designed to eliminate pin sag and improve ease of stripping. Pins are made from steel and are heat-treated for long life.

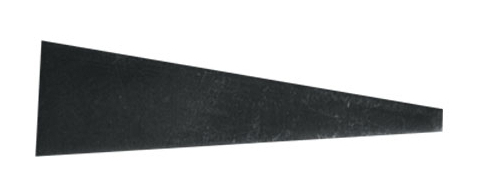

Straight Wedge
Product #SWE10000000000
250/bag
Wedges are used with pins to tighten adjoining concrete forms. Securing the tie and concrete form in place.
Typical connection with pin and straight wedge :

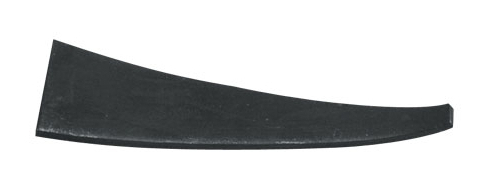

Curved Wedge
Product #SWE20000000000
250/bag
Curved wedges have the same function as straight wedges but the curved shape allows for easy insertion and less risk of damage to face of concrete form.
Flathead Pin
Product #SPI20000000000
The flathead pin is used when pinning through a single rail or when placing concrete against an existing wall. Also used in laydown applications, such as 36" x 96" panel, to pour a 36" tall concrete wall. For smooth wall applications ONLY!

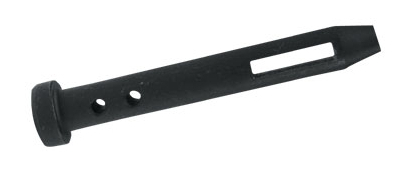

Combination Filler Pin with Head
Product #SPI01152000000
This pin passes completely through 2" aluminum fillers and connects adjoining panels with a wedge. To convert to either 1" or 1½" filler simply insert duplex nail in the appropriate hole. Combination with head - 1", 1½", 2"

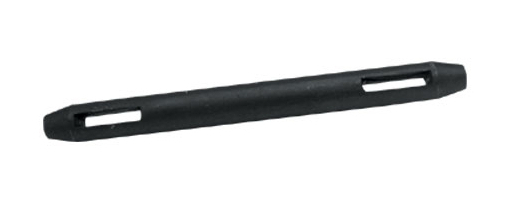

Straight Filler Pin
Product #
SPI01000000000 - 1"
SPI02000000000 - 2"
SPI03000000000 - 3"
SPI04000000000 - 4"
SPI06000000000 - 6"
These pins pass through appropriate size fillers and are connected to adjoining panels with wedges.

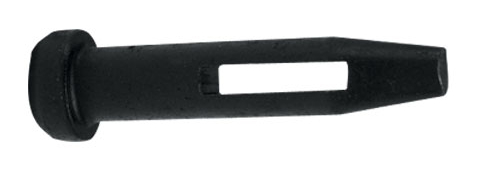

Pax Pin
Product #SPI30000000000
Pax pin is slightly longer than our standard pin. Used with pax forms and special applications.

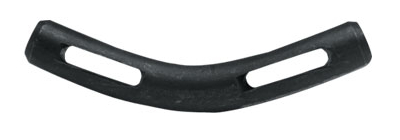

Curved Pin
Product #SPI40000000000
The curved pin is used in special corner and radius applications.
