Essential Extras
These essential extras assist in the setting and removal of concrete forms and accessories.

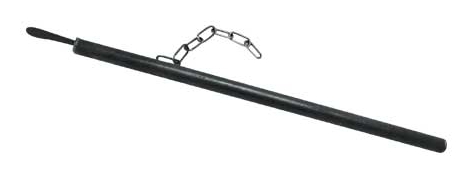

Wall Aligner
Product #AOT20000000000
This practical tool creates movement of wall when prying against footing. Permits one-person leverage to move forms and square corners. The heavy-duty steel chain is attached to the pin on the bottom of the concrete form. Leverage end is heat-treated for extended life. Also available with hook for chain adjustment.

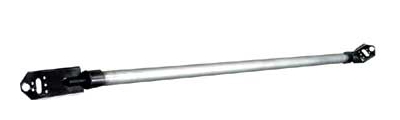

Aluminum Wall Brace
Available in the following sizes:
Product #ABR00000013600
13'6" - Ideal for 9' tall walls
Product #ABR00000010600
10'6" - Ideal for 8' tall walls
Product #ABR00000005300
5'3" - Ideal for 4' tall walls

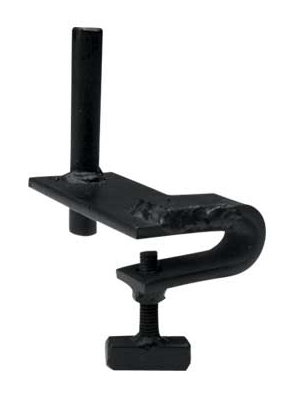

String Line Attachment
Product #SOT20000000000
String line attachment is clamped to the top of the OSC and is used to align the wall.

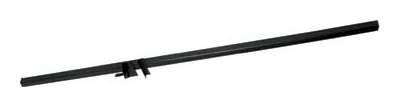

Form & Corner Puller
Product #SPU10000000000
Used to strip panels from top of wall. Ideal for brick-faced concrete forms.

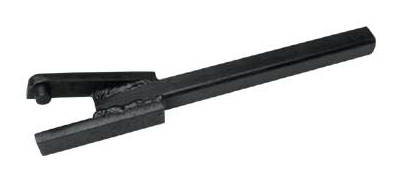

Siderail Puller
Product #SOT10000000000
Designed to remove panels from ground level. Specify left or right hand.

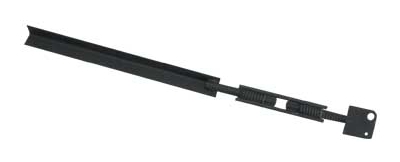

Turnbuckles
Product #SBR10000000000
The turnbuckle allows adjustment without moving brace. Easily attached to either lumber or metal pipe to manipulate wall braces that pin to the concrete form.

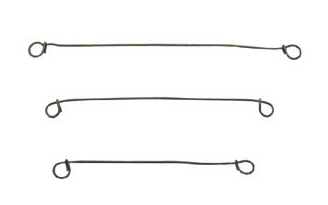

Wire Ties
Product #
SWT55000000000 - 5 ½"
SWT65000000000 - 6 ½"
SWT80000000000 - 8"
5,000 per roll

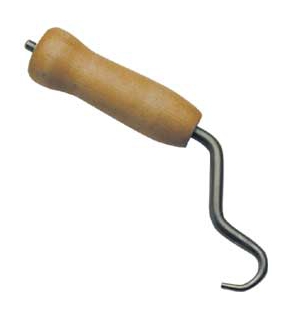

Tie Twister
Product #SOT30000000000
Used to tie wire ties quickly and easily. Works with any size wire tie.

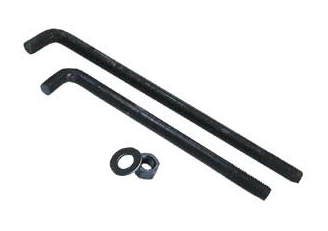

Bolts
Product #
SB005080000000 - ½" x 8"
SB005100000000 - ½" x 10"
- Foundation bolts, 100 per bag
- Also available with nut and washer
- Additional sizes available.
Tie Breaker Bar
Product #SOT15000000000
Vertically breaks ties quickly and easily without gouging the wall.

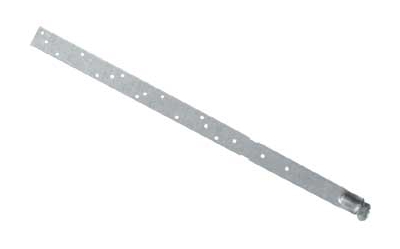

Hurricane Strap
Product #
SB005200000000 - 20"
SB005240000000 - 24"
Rod Support
Product #
SR010000000000 - Single
SR020000000000 - Double
Designed to hold rebar in position while placing concrete in footings.

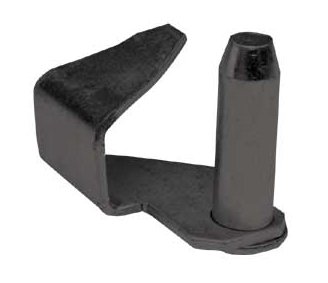

Aligner Clamps
Product #SCP10000000000
Aligner clamp with 5/8" pin, ¾" gap is used to pin aluminum brickledge to top of concrete forms. Also used to pin top rail to bottom rail in stacking and cap form applications.
