Insulation
WTF's innovative concrete form insulation system, including accessories and concrete wall insulation process.
Why does it take to use the WTF Insulation System?

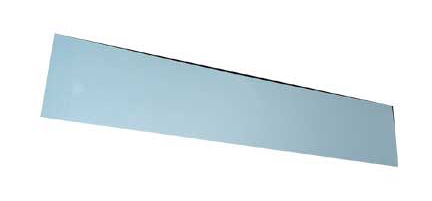

Foam
WTF utilizes a 2 lb. density PerformGuard® EPS, a termite resistant expanded polystyrene insulation.
- Resistant to termite damage
- Resistant to carpenter ant damage
- Meets code requirements for ground contact use
- Cost effective
- Various sizes available.

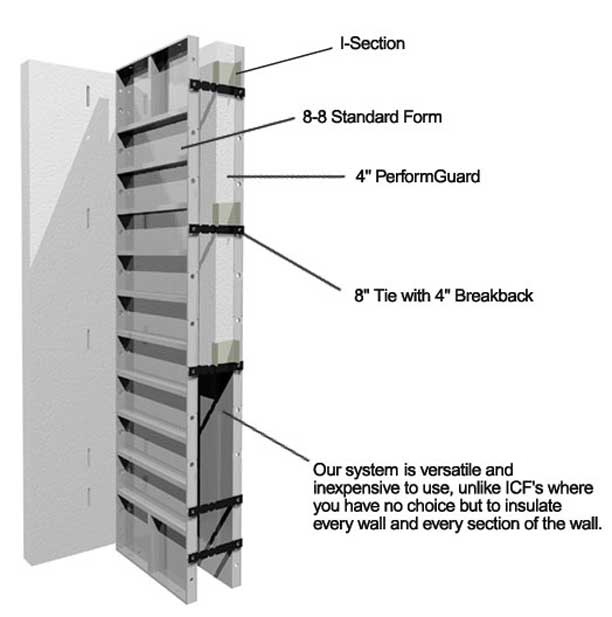

I-Section

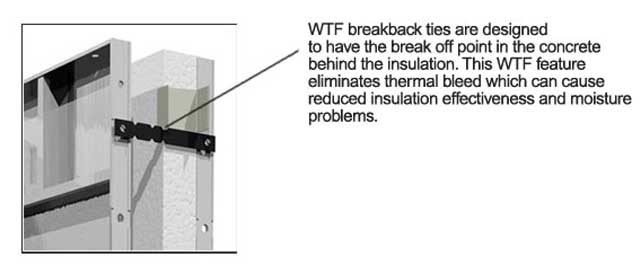

The I-Section along with the breakback tie ensures that insulation stays in place for concrete placement. Also provides an additional attaching point.
Patent #5,987,830

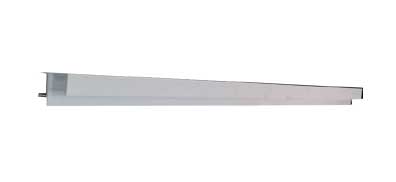

F-Section
The F-Section is used at corner transitions, window and door openings, top of concrete wall, deck, and structural slab to create additional attaching points and a termite barrier.
Patent #5,987,830

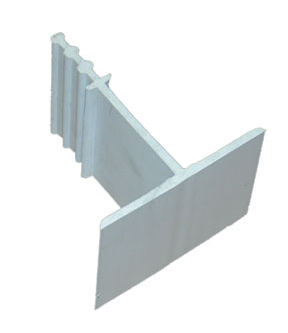

T-Section
The T-Section is utilized in 36" wide insulation applications (such as foundations). It is placed in the center of insulation to create additional attaching points for exterior wall treatments. Sold in 2 1/2" lengths.
