Big Panel Concrete Forms

big panel concrete forms

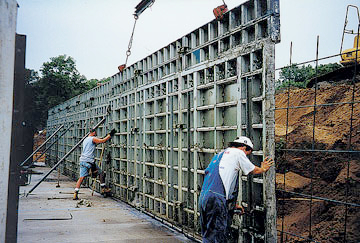

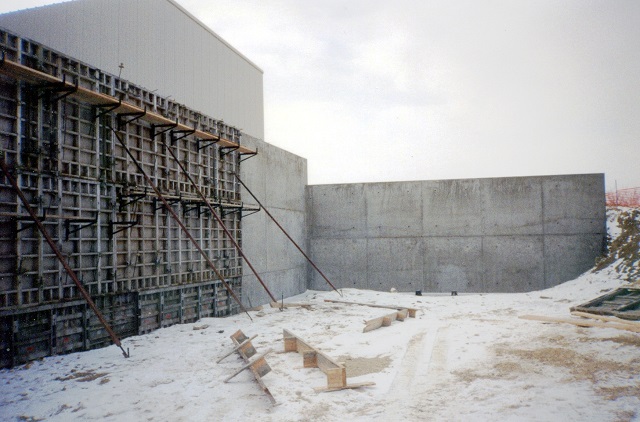

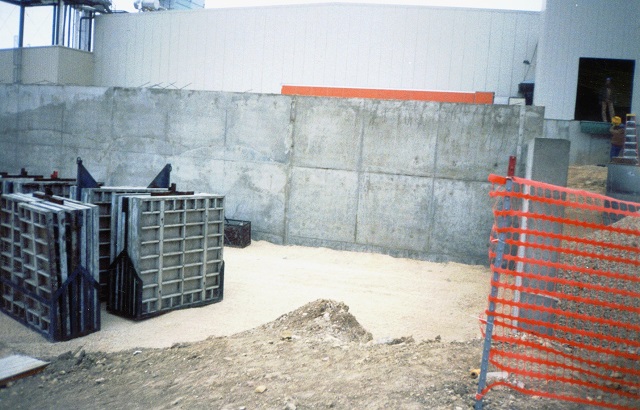

Just as its name implies, these forms are built large. The WTF Big Panel is ideal for repetitive tall concrete wall construction.

Available in:

  • 8' x 8'
  • 8' x 9'
  • 8' x 10' plus various size fillers and corners
  • Face Sheet thickness of .156 to provide flat walls.
  • Weighs 7 lbs per square foot including all accessories and bracing.
  • Panels are only 4 3/4" thick.

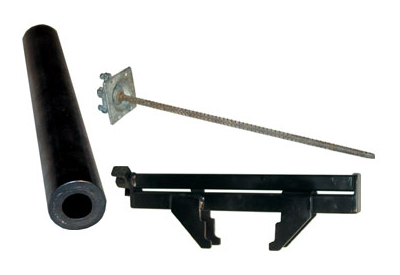

big panel accessories big panel accessories
  • Side Rail allows for the attachment of WTF handset concrete forms using a standard Pin and Wedge.
  • Utilizes a one piece outside corner.
  • Brace and accessories are stored on the form.
  • Uses a tapered reusable cone with rod tie.
  • AW Clamp is also a Waler piece.
