Laydown Applications

WTF has many concrete form designs that allow the concrete form to be laid on its side. The 36"x48" laydown has additional bracing to allow for this use. For customers with concrete forms that are not designed to be laid on their side WTF has perfected hardware for this application. We recommend the following guidelines.

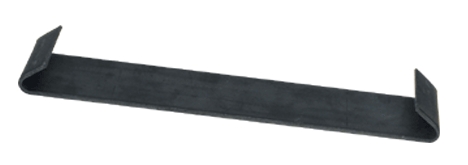

Flat Steel U-Tie

flat steel u-tie flat steel u-tie

For laydown applications ONLY! Not to be used in close trench conditions where stripping requires pulling top of form down toward ground. No pins or wedges required.

flat steel u-tie flat steel u-tie
  • Maximum wall height: 36"
  • Maximum tie spacing: 24"
  • Up to 36"
  • Specify Nominal or Full

Wire Base Tie

wire base tie wire base tie

Wire base ties are used in laydown form applications. Drive wedges through raised loops to secure base tie through rail.

wire base tie wire base tie
  • Maximum wall height: 36"
  • Maximum tie spacing: 24"
  • Up to 20"
  • Specify Nominal or Full

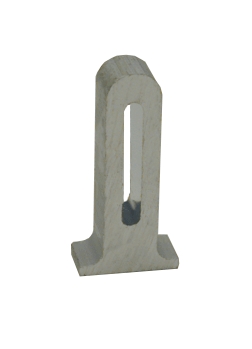

Base Tie Pin (Silver Bullet)

base tie pin base tie pin

Product #

API10000000000


For laydown applications ONLY! Base tie pins hold tie in place at the base of the concrete form.

base tie pin base tie pin
  • Maximum wall height: 36"
  • Maximum tie spacing: 24"

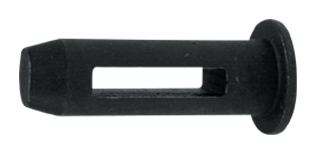

Flathead Pin

flathead pin flathead pin

Product #

SPI20000000000

flathead pin flathead pin

The flathead pin is used in laydown applications with standard ties. Can also be used when pouring a concrete wall against an existing structure. This pin is the only design used in laydown applications in walls over 36" tall.
