Blockouts/Blockdowns

For beams, drain tiles, piers, steps, and other blockout applications, WTF has many blockout accessories that easily attach to your concrete forms. When forming garage door openings, access holes, or other specific depth blockdowns, choose from WTF's selection of steel or aluminum blockdowns. Blockoffs are also available for blocking off wall ends.

Beam Blocks

Heavyweight beam block ready to attach to your concrete form with a simple "C" clamp. For use with a standard 8" deep I-beam. Other sizes available. Order by height, width and front to back.

45° Beam Blocks

45° beam blocks 45° beam blocks

The 45° degree blockout is used to create beam void for use of beams in bay areas. Heavyweight beam block ready to attach to your concrete form with a simple "C" clamp. For use with a standard 8" deep I-beam. Other sizes available.

Drain Tile Blockout

Drain Tile Blockout allows ease of installation of Drain Tile. Specify size and hole pattern. Available in steel or aluminum.

Pier Blockout

Pier Blockout is placed on Pier Pad prior to slab pour. Once concrete is poured and cured Blockout is removed for installation of Pier.

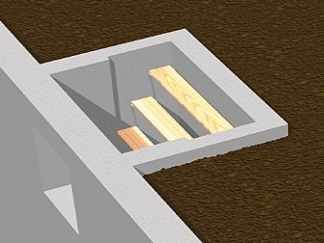

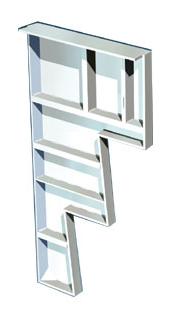

Egress Step Blockout

egress step blockout egress step blockout

Egress Step Blockout allows for step ledges to be poured in place for concrete Egress Bays. Treated lumber is affixed and used for steps.The Concrete Egress Bay can be placed at time of foundation pour or as a secondary operation.


Specify riser height, tred depth and hole pattern.

egress step blockout 1 egress step blockout 1 egress step blockout 2 egress step blockout 2 egress step blockout concrete egress step blockout concrete

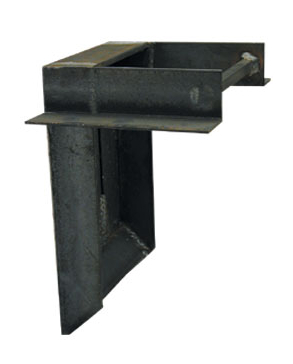

Steel Blockdowns

steel blockdowns steel blockdowns

One-piece specific width steel blockdowns create bulkheads for forming garage door openings, access holes, or other specific depth blockdowns. Can be "C" clamped into position. Specify nominal or full, width and depth.

Aluminum Blockdowns

aluminum blockdowns aluminum blockdowns

Lightweight aluminum provides ease in handling for those jobs that need fast and easy placement. "C" clamp to top of the wall. Specify nominal or full, width and depth.

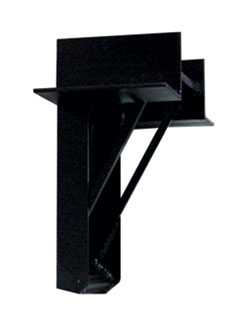

All Steel Denver Blockdown

all steel denver blockdown all steel denver blockdown all steel denver blockdown all steel denver blockdown

Our one-piece steel blockdown is used with lumber to form garages or other blockdown applications of various depths. Can be used for depths of 4" to 16". Specify nominal or full, depth, and wall thickness.

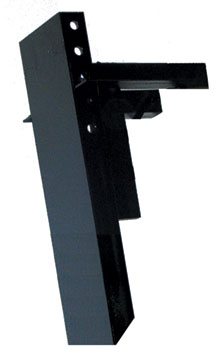

All Steel Adjustable Blockdown

all steel adjustable blockdown all steel adjustable blockdown all steel adjustable blockdown all steel adjustable blockdown

The adjustable blockdown allows for depths of 8"-12" and 14"-24". Specify nominal or full, and wall thickness.

Two-Piece Steel Adjustable Blockdown

two-piece steel adjustable blockdown two-piece steel adjustable blockdown two-piece steel adjustable blockdown two-piece steel adjustable blockdown

Product #SBD08000000150

Our two-piece steel blockdown is used with lumber to form garages or other blockdown applications of various widths and depths. Can be used for depths of 4" to 16".

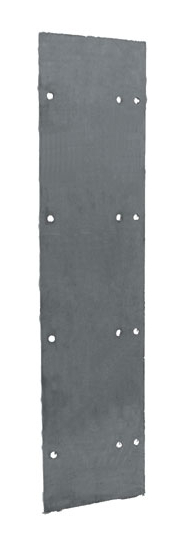

Blockoffs

two-piece steel adjustable blockdown two-piece steel adjustable blockdown two-piece steel adjustable blockdown two-piece steel adjustable blockdown

Aluminum bulkhead plates are designed for blocking off wall ends or to bridge over dig from basement to garage (jumps). Available in single or combination widths x height. Specify Nominal or Full, wall thickness and hole pattern.

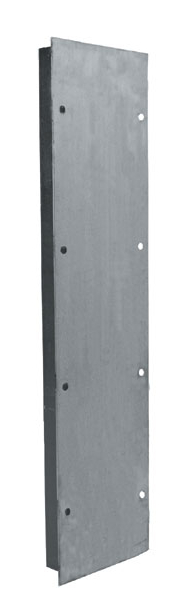

Blockoff/Blockback

blockoff-blockback blockoff-blockback blockoff-blockback blockoff-blockback

The blockoff/blockback combination is used for blocking off wall ends. It can also be used to blockback a nominal or full corner, usually at a "T" wall where the height drops. Can be turned around and used as a blockoff.
